S76 Launch Keyboard json

System76 sells configurable keyboards. Their configurator tool supports importing keyboard layouts.

Dvorak Launch Lite - mostly default

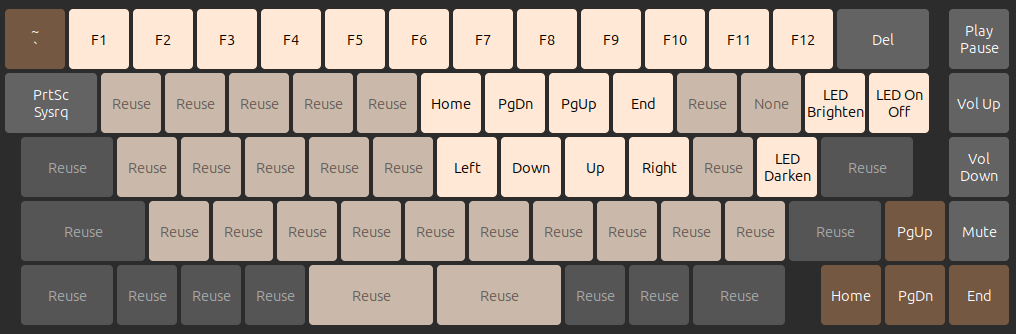

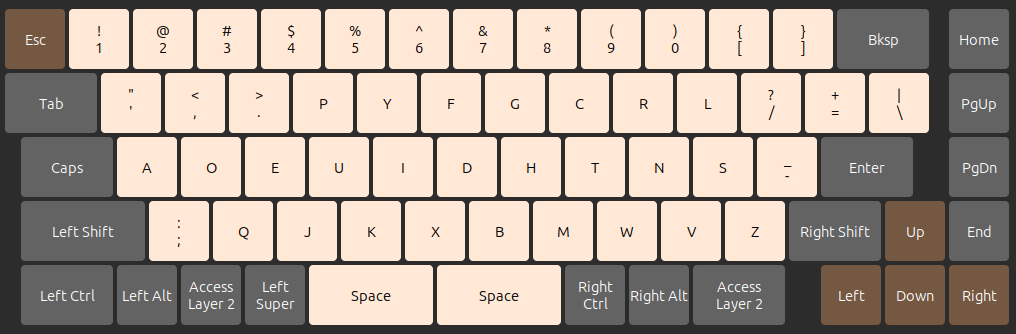

This puts Dvorak on Layer 1, leaves layer 2 default except moving the LED Darken to follow the location of the "minus" key.

A good starting point for customization.

Tested on the Launch lite, may work on other models.

dvorak-s76-launch-lite.json

Dvorak+Qwerty Launch Lite

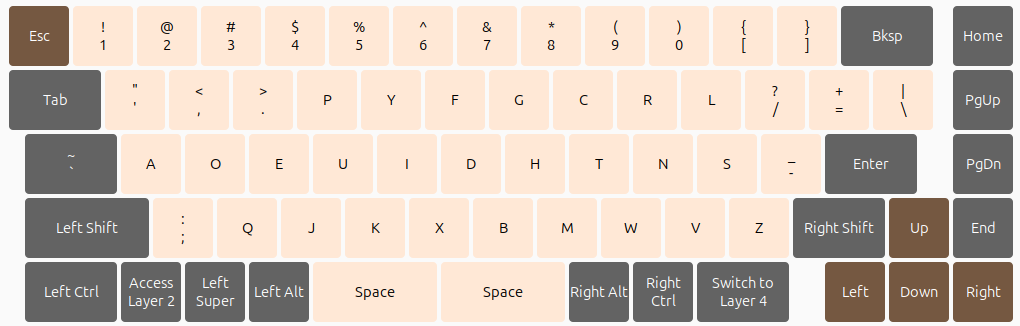

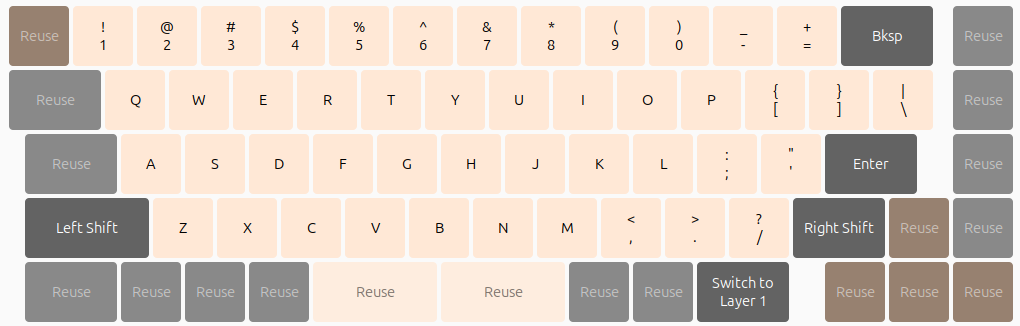

This is same as previous, but adds qwerty on layer 4 for those times where you need to go back and forth. Swap between Layer 1 and 4 by using the bottom right programmable key.

Tested on the Launch lite, may work on other models.

dvorak-s76-launch-lite-with-qwerty.json
